Self-draining, chemical-resistant modular polypropylene flooring engineered for car detailing studios, wash bays, and automotive service centers. Sourced directly from certified producers and installed across India with zero middleman markups.
In the automotive care and detailing sector, traditional flooring options like bare concrete, standard ceramic tiles, and epoxy coatings present recurring operational hazards. Water and mud pool to create slip hazards, while automotive chemicals erode epoxy and permanently stain concrete.
Our UV-stabilised Polypropylene (PP) Interlocking Modular Tiles resolve these failures through targeted engineering. The open-rib channel underside lets high-pressure rinse water, shampoo lather, and road grit pass directly underneath to the floor drain, keeping vehicle tires and technician boots dry.
The textured top ribs provide essential traction for technicians, even when the surface is saturated with foam. Furthermore, the polypropylene copolymer structure is chemically inert, so it does not soften, swell, or discolour when exposed to engine oils, wheel cleaners, alkaline foams, or acidic degreasers.
Our high-load PP tiles are engineered for the specific demands of distinct automotive workspaces, providing targeted benefits for each zone.

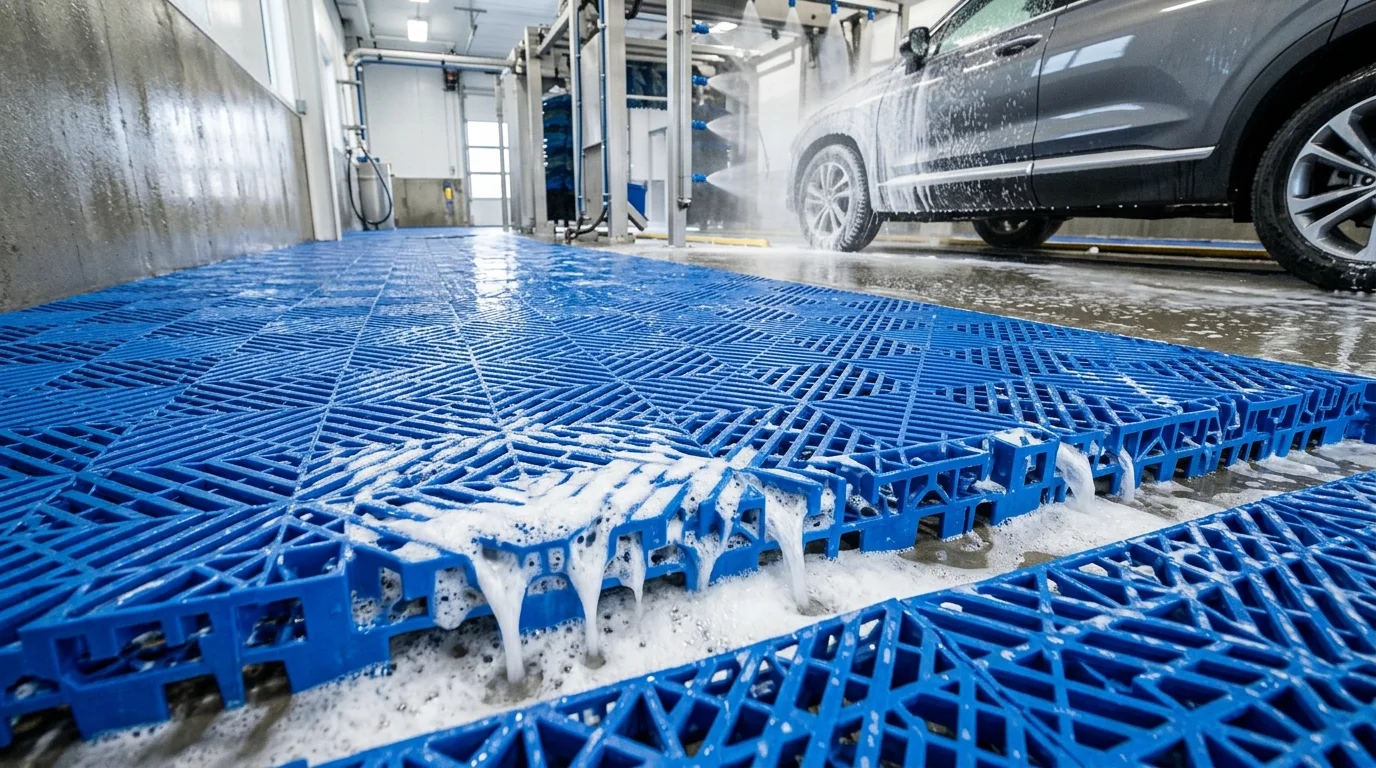

High-flow drainage grid keeps the wash station clean, eliminates surface puddles, and prevents slip-and-fall hazards for technicians working in wet conditions.

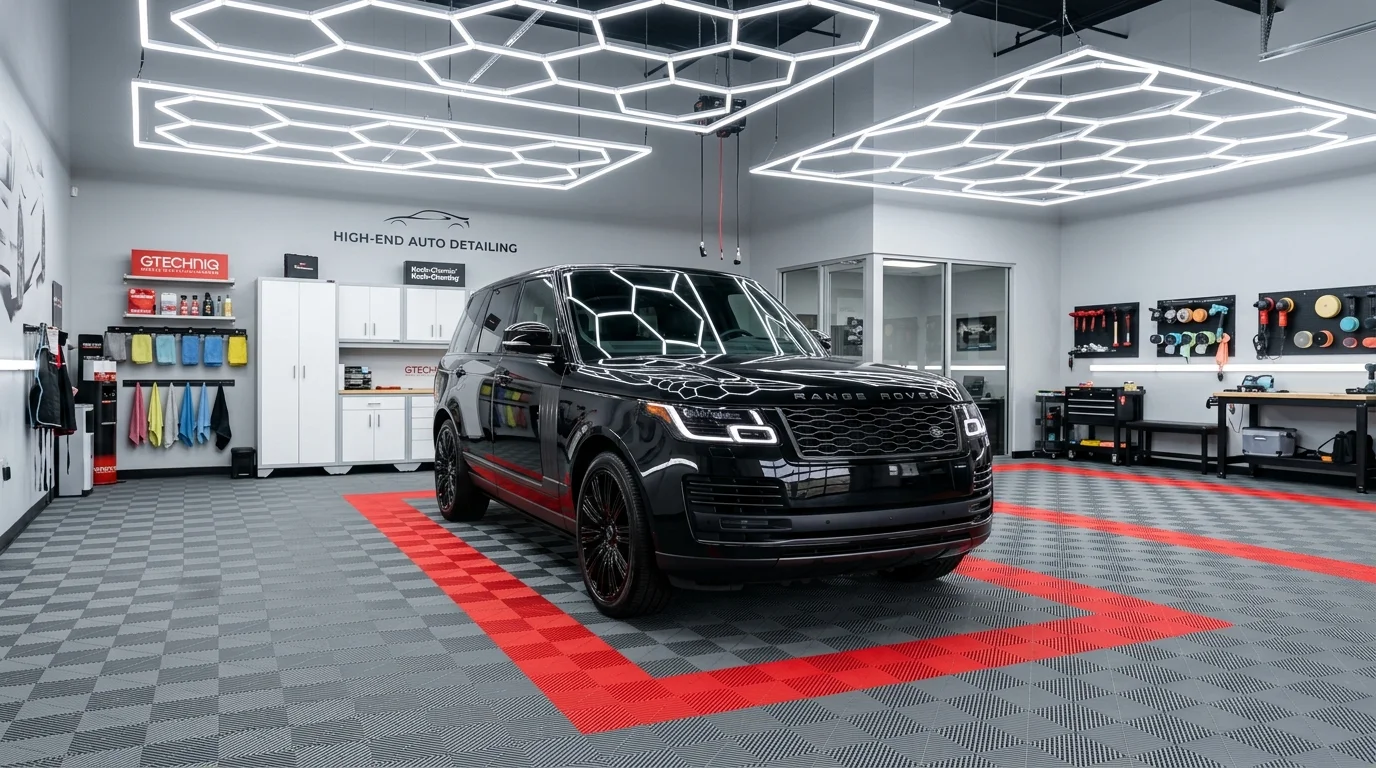

Clean, professional aesthetics with customizable multi-color border designs to demarcate distinct workstations for polishing, PPF, and ceramic coating application.

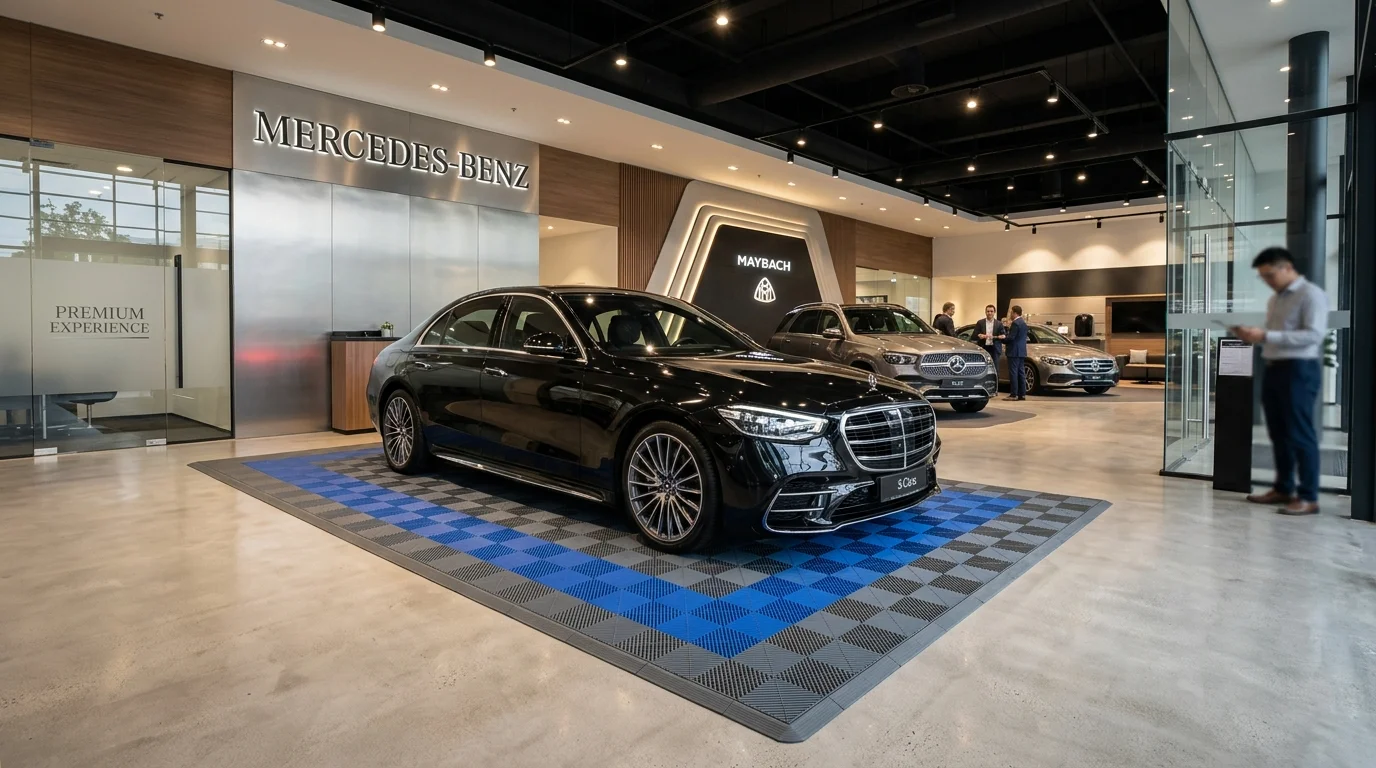

Durable, high-load parking surfaces that prevent unsightly tire marks and manage rain run-off without compromising the high-end showroom presentation.

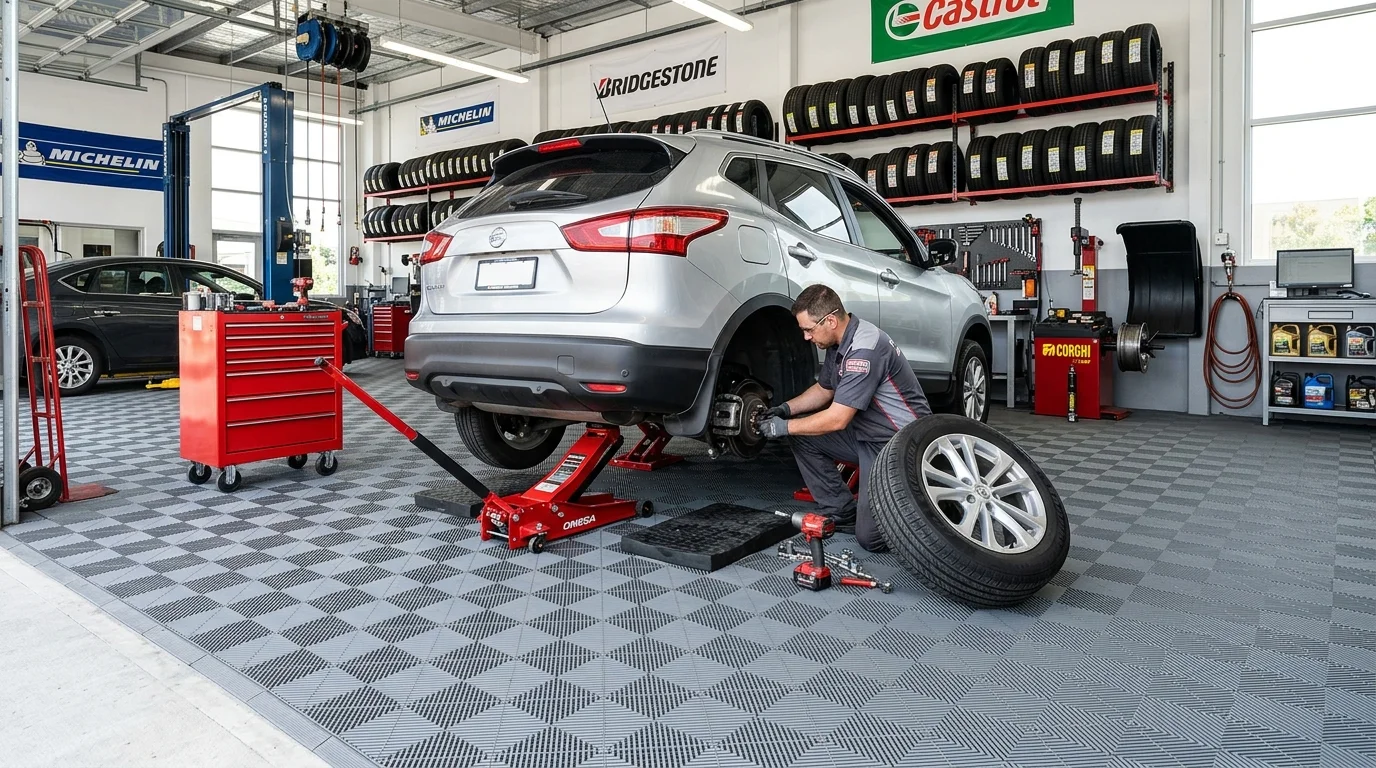

Engineered to resist corrosive wheel cleaners, dropped torque tools, and light mechanical work. A protective pad is required under pinpoint hydraulic jacks.
Designed for heavy-duty commercial automotive applications. The sub-base must have a 1% to 1.5% slope toward trench drains for effective fluid evacuation.
| Material | 100% Virgin Polypropylene (PP) Copolymer + UV Stabilisers |
| Dimensions | 304.8 mm × 304.8 mm × 18 mm (approx. 1 sq. ft.) |
| Tile Weight | ~350g – 400g per tile (heavy-duty reinforced rib structure) |
| Static / Rolling Load | 5,000 kg – 10,000 kg (Supports SUVs and vans) |
| Drainage Rate | > 95% surface water evacuation efficiency |
| Operating Temperature | −20°C to +60°C (stable under Indian summer bay heat) |
| Color Options | Jet Black, Gunmetal Grey, Racing Red, Caution Yellow, Royal Blue |
| Sub-base Requirement | Flat concrete slab with a 1% to 1.5% slope toward trench drains (non-negotiable for water evacuation). |
A side-by-side technical evaluation of UWIN PP Interlocking Tiles against standard epoxy floor coating and bare concrete slabs.
| Feature | UWIN PP Interlocking Tiles | Epoxy Floor Coating | Bare Concrete Slab |
|---|---|---|---|
| Water Drainage | Instant (Self-draining grid) | Surface pooling | Absorbs water/grease |
| Chemical Resistance | High (Inert PP Copolymer) | Medium (Peels with brake fluid/acid) | Poor (Stains permanently) |
| Installation Time | Same-day (No curing) | 3–5 days curing time | N/A |
| Slipperiness When Wet | Low (Anti-skid texture) | Extremely high (Slip hazard) | Moderate |
| Maintenance / Repairs | Replace individual tiles | Complete patch resurfacing | Grinding / chemical wash |
Specification-precise answers to the most common questions our technical team receives regarding car wash and detailing studio flooring.
The open-grid mesh design allows water, soap foam, and sediment to pass directly through the surface into the sub-floor drainage channels. These channels guide the evacuated fluids efficiently toward your facility's trench drain, eliminating surface ponding instantly.
Yes, the tiles feature a high-density support pillar network engineered to withstand rolling vehicle weights of 5,000 to 10,000 kg. For pinpoint load applications such as hydraulic jacks, a protective rubber or steel pad is required under the jack plate.
Most dirt and soap residue drains away naturally with continuous water flow during normal bay operations. For periodic maintenance, the surface can be flushed with a high-pressure jet washer, or modular sections can be unclicked to access trench drains.

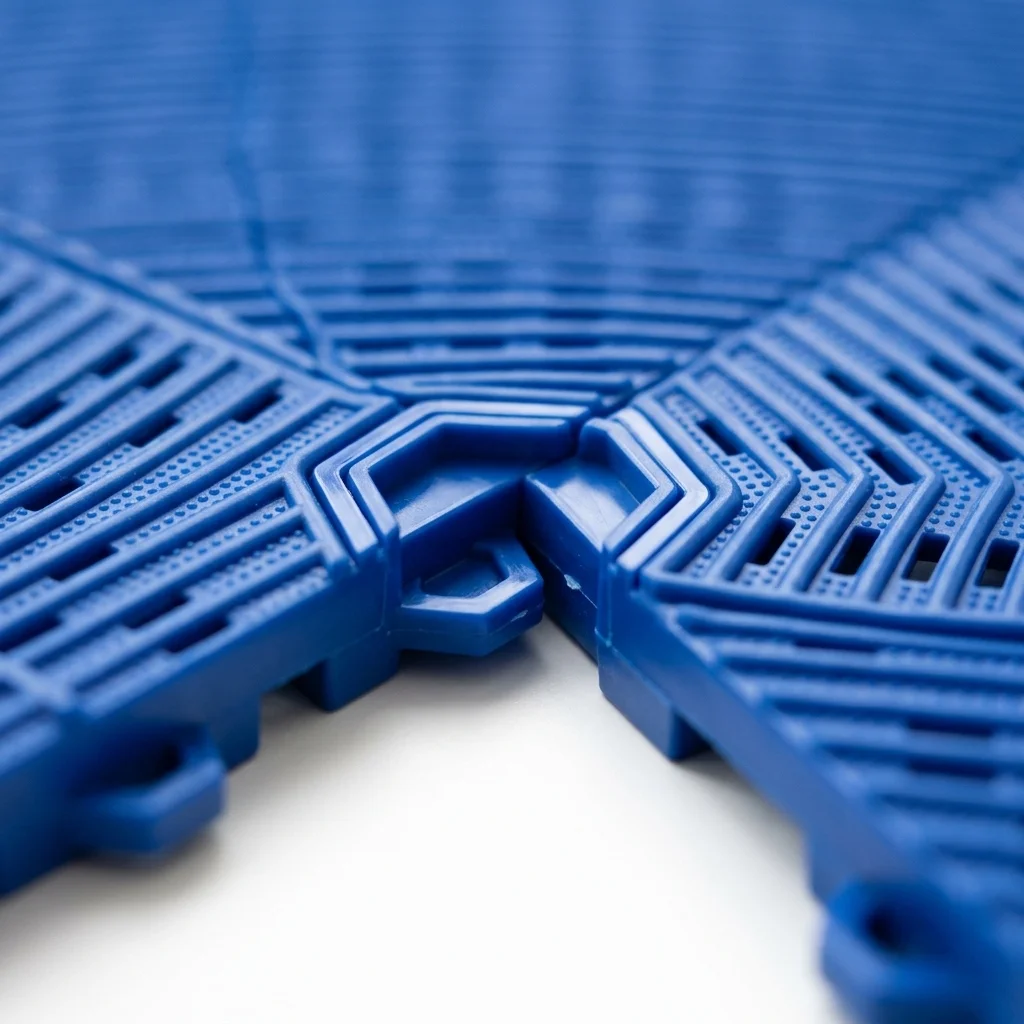

No adhesives are required. The tiles feature a floating click-lock snap system that securely connects each modular piece. This dry installation method allows the floor to expand and contract with temperature variations without buckling or requiring curing time.
Yes, UWIN Floortech supplies certified materials directly to sites across India, completely bypassing trading middlemen. We provide full turnkey installation services through our trained application crews, or we can supply detailed DIY layout guidance for your in-house contractors.
Discuss your studio dimensions and receive a manufacturer-direct price estimate within 4 working hours.
